Hot work tool steel

ALTA 1.2329 Tool Steel Specification

Steel properties

ALTA 1.2329 steel have high resistance to thermal shock and heat cracking, good mechanical characteristics in hot condition, optimal mechanical characteristics in cold condition and good toughness in hot condition. Obtained through a special 'super clean' manufacturing process -ESR, which allows a high level of micro-purity to be achieved.

Applications

Special alloyed steel designed for dies, molds, punches and other components subjected to high working temperature, such as :

² dies subjected to low pressure

² containers for die-casting presses

² extrusion press blocks and sleeves for extrusion presses etc.

Chemical composition

Chemical Composition per %



C

Si

Mn

P

S

Cr

Mo

V

Ni

Cu

Min.

0.43

0.60

0.65





1.65

0.25

0.17

0.45



Max.

0.48

0.75

0.85

0.025

0.010

1.85

0.35

0.22

0.60

0.25

Basic melting process :

IM/EAF + LF + VD + (ESR)



Hardness :

Max 230 HB (annealed)

Reduction ratio :

5 : 1 minimum or required

Grain size :

≥ 5.0 per ASTM E112

Non-metallic inclusion :

≤ 1.0 (thick), ≤ 1.5 (thin) per ASTM E45 method A (more pure by ESR route)

Microstructure SEP1614 or NADCA # 207

Ultrasonic Test

SEP1921, EN 10308, ASTM A388 or agreed methods

Macro-structure

As per ASTM E381

Straightness / flatness

≤ 1.5 mm / m (machined), ≤ 2.5 mm / m (black)

Tolerance

Per discussed

Size range (round bars)

Ø 12 - 800 mm

Size range (flats, plates)

8 - 500 mm in thickness

max. 1100 mm in width

Heat treatment

Annealing

Temperature(°C)

Hardness

760 - 800

max. 230 HB



Hot-forming

Temperature(°C)

900 - 1000

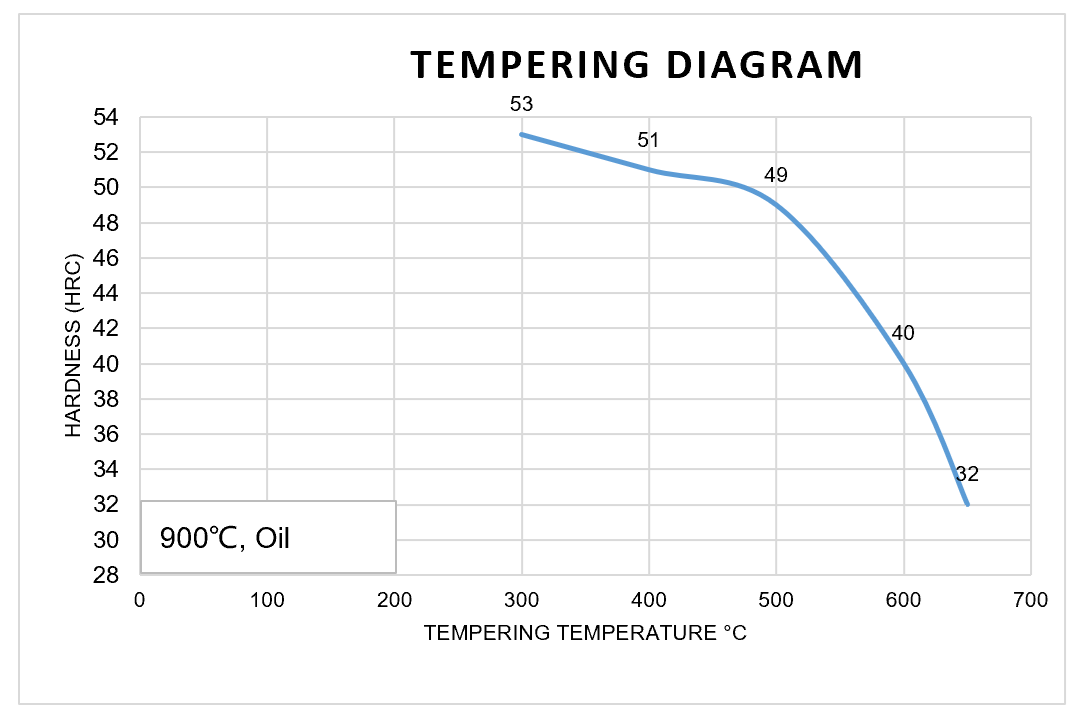

Hardening and tempering

Quenching temperature(°C)

Quenching medium

Frequently-used tempering temperature(°C)

880 - 920

Oil or salt bath

/



Ac1 Ac3 Ms
770 810 220



Downloads

  • 2024-06-12 Alta 1.2329 SPEC (011 - S6 - T1 ).pdf

    끂65 247.25 KB

Product images

넳 넲

Features

² High toughness and ductility

² High micro-cleanliness

² High polishability and machinability

² Intermediate red hardness

² Intermediate thermal fatigue resistance
