Hot work tool steel

ALTA 1.2367 Tool Steel Specification

Steel properties

ALTA 1.2367 steel for hardening in oil and in air with very good hardenability, high firmness during the heat and resistance to the tempering, very good toughness and plastic properties during normal and also higher temperatures. Further the steel has a very good resistance to tearing of thermal fatigue and low sensitivity to quick changes of temperature. The steel is appropriate for the heat treatment also for firmness over 1800 N/mm2 and for tools cooled by water. It is well-workable during the heat and well-workable in the soft-annealed state.

This 1.2367 steel increases the content of Mo on the basis of 1.2344/H13 steel, while reducing the content of Si, in order to improve the secondary hardening effect of the material during tempering.

Its thermal stability and impact toughness were better than that of 1.2344/H13 steel.

Applications

² High pressure die-casting molds (cooper alloy, brass etc)

² Extrusion dies (aluminium, alloys etc)

² Tools for hot cutting, for cutting thorns and trimming dies

Chemical composition

Chemical Composition per %



C

Si

Mn

P

S

Cr

Mo

V

Ni

Cu

Min.

0.35

0.30

0.30





4.80

2.70

0.40





Max.

0.40

0.50

0.50

0.020

0.010

5.20

3.20

0.60

0.25

0.25

Basic melting process :

IM/EAF + LF + VD + ESR (EFS-annealing)



Hardness :

Max 229 HB (annealed)

Reduction ratio :

5 : 1 minimum or required

Grain size :

≥ 6.0 per ASTM E112

Non-metallic inclusion :

≤ 1.0 (thick), ≤ 1.5 (thin) per ASTM E45 method A (more pure by ESR route)

Microstructure SEP1614 or NADCA # 207

Ultrasonic Test

SEP1921, EN 10308, ASTM A388 or agreed methods

Macro-structure

As per ASTM E381

Straightness / flatness

≤ 1.5 mm / m (machined), ≤ 2.5 mm / m (black)

Tolerance

Per discussed

Size range (round bars)

Ø 12 - 600 mm

Size range (flats, plates)

8 - 500 mm in thickness

max. 1100 mm in width

Heat treatment

Annealing

Temperature(°C)

Hardness

800 - 840

max. 229 HB



Hot-forming

Temperature(°C)

850 - 1050

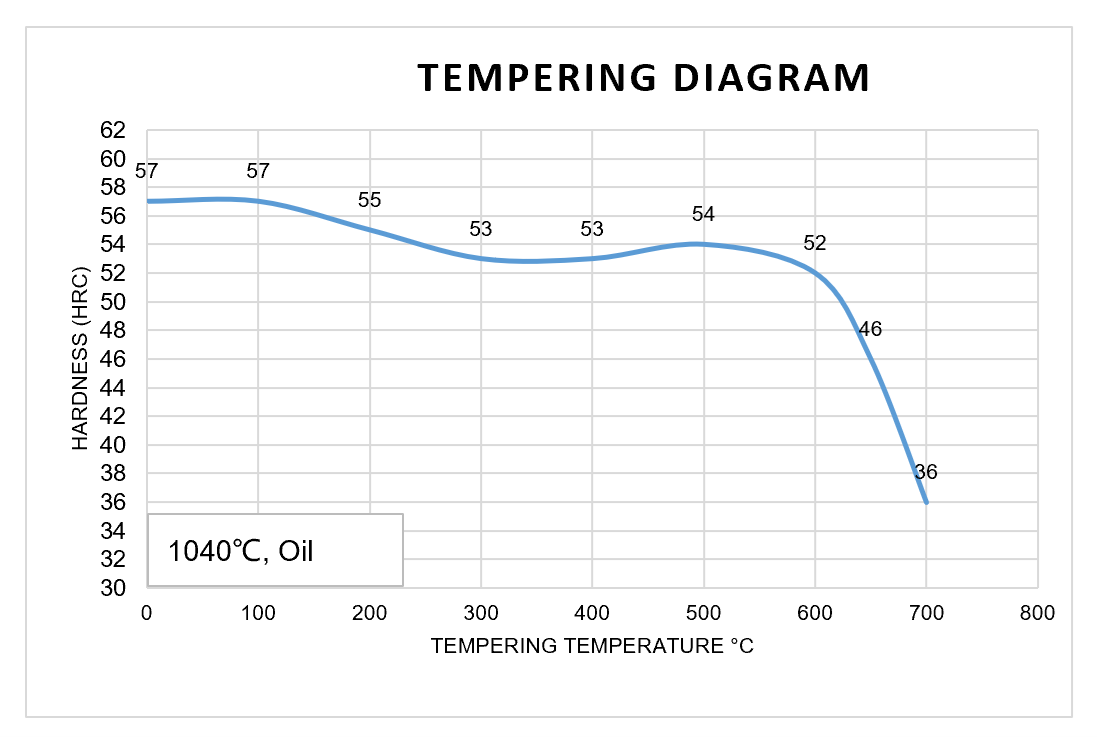

Hardening and tempering

Quenching temperature(°C)

Quenching medium

Frequently-used tempering temperature(°C)

1030 - 1050

Oil

540 - 560



Ac1 Ac3 Ms Mf
850 950 320 100



Downloads

  • 2024-06-12 Alta 1.2367 SPEC (011 - S6 - T1 ).pdf

    끂70 255.3 KB

Product images

넳 넲

Features

² Very high thermal fatigue resistance

² High hot hardness (red hardness)

² High wear resistance

² High High micro-cleanliness

² High polishability and machinability

² Good toughness and ductility

² Good hardenability and dimensional stability
