Hot work tool steel

ALTA 1.2714 Tool Steel Specification

Steel properties

ALTA 1.2714 is Nickel-chrome-molybdenum-vanadium steel for hardening in the stream of air or in oil with high hardenability. The steel has high hardness after hardening, good resistance to the tempering, good toughness and good firmness during the heat. Is resists quick temperature changes and also thermal fatigue. The steel is well-workable during the heat and well-workable in the soft-annealed state.

Applications

² Hammer forging dies, hot forging tools

² Extrusion dies

² Large molds for plastic processing used in thermoplastics

Chemical composition

Chemical Composition per %



C

Si

Mn

P

S

Cr

Mo

V

Ni

Cu

Min.

0.50

0.10

0.60





0.80

0.35

0.05

1.50



Max.

0.60

0.50

0.90

0.025

0.015

1.20

0.55

0.15

1.80

0.30

Basic melting process :

IM/EAF + LF + VD



Hardness :

Max 248 HB (annealed)

Reduction ratio :

5 : 1 minimum or required

Grain size :

≥ 5.0 per ASTM E112

Non-metallic inclusion :

≤ 1.0 (thick), ≤ 1.5 (thin) per ASTM E45 method A (more pure by ESR route)

Microstructure SEP1614 or NADCA # 207

Ultrasonic Test

SEP1921, EN 10308, ASTM A388 or agreed methods

Macro-structure

As per ASTM E381

Straightness / flatness

≤ 1.5 mm / m (machined), ≤ 2.5 mm / m (black)

Tolerance

Per discussed

Size range (round bars)

Ø 12 - 800 mm

Size range (flats, plates)

8 - 600 mm in thickness

max. 1100 mm in width

Heat treatment

Annealing

Temperature(°C)

Hardness

680 - 710

max. 248 HB



Hot-forming

Temperature(°C)

850 - 1050

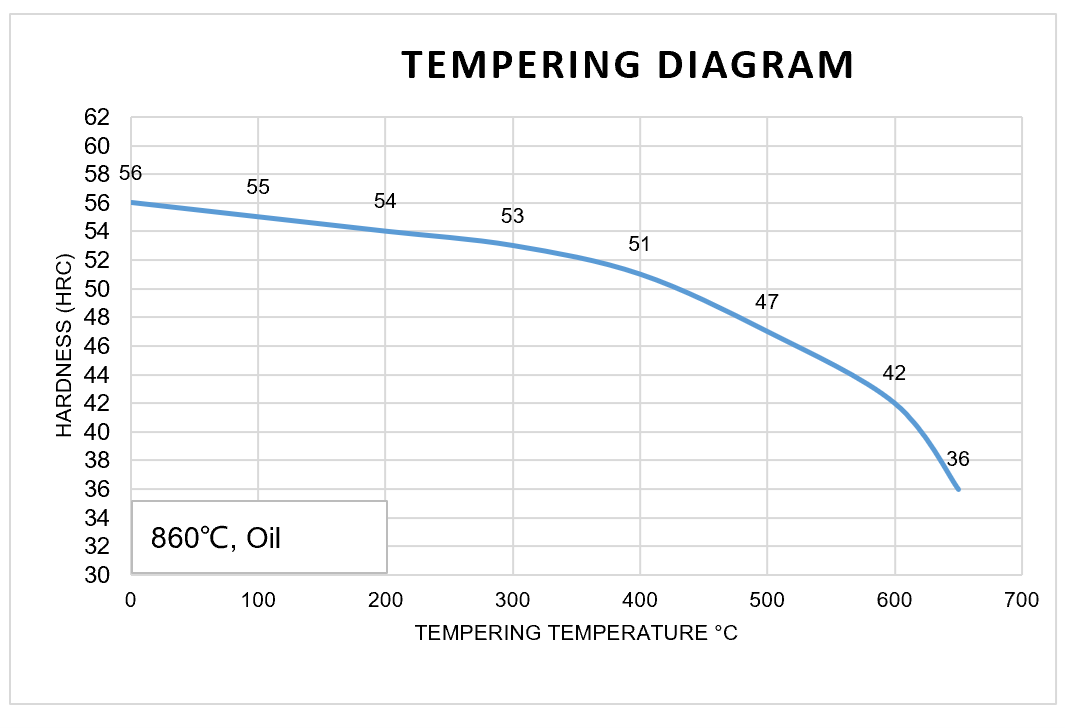

Hardening and tempering

Quenching temperature(°C)

Quenching medium

Frequently-used tempering temperature(°C)

840 - 910

Oil

420 - 550, 2 rounds



Ac1 Ac3 Ar1 Ar3 Ms
740 815 650 730 210



Downloads

  • 2024-06-12 Alta 1.2714 SPEC (011 - S6 - T1 ).pdf

    끂72 251.19 KB

Product images

넳 넲

Features

² Good toughness and ductility

² Good thermal fatigue resistance

² Good hardenability and dimensional stability
