Home  ꄲ  Products  ꄲ  ALTA 7Cr7Mo2V2Si(LD) Tool Steel Specification

Cold work tool steel

ALTA 7Cr7Mo2V2Si(LD) Tool Steel Specification

Steel properties

ALTA 7Cr7Mo2V2Si/LD is a new developed type of cold working die steel. While by ensuring a good wear resistance, the steels strength and toughness are greatly improved than normally used High Carbon-High Chromium steels. Its strength, toughness, fatigue fracture resistance, etc. are all better than Cr12MoV, W18Cr4V/1.3355 steels. This steel has good cold and hot processing performance, with a wide heat treatment temperature range and small deformation.

7Cr7Mo2V2Si/LD is suitable for manufacturing difficult-to-deform forming molds or have complex shapes, especially when the molds needs to withstand large impact and bending loads, its premium performance stand out.


Applications

² Large and medium-sized punching dies

² Heavy-duty cold heading dies

² Cold extrusion dies

Chemical composition

Chemical Composition per %



C

Si

Mn

P

S

Cr

Mo

V

Ni

Cu

Min.

0.70

0.85







6.50

2.05

1.72





Max.

0.80

1.05

0.50

0.030

0.020

7.50

2.50

2.20

0.25

0.25

Basic melting process :

IM/EAF + LF + VD+(ESR)



Hardness :

Max 230 HB (annealed)

Reduction ratio :

5 : 1 minimum or required

Grain size :

≥ 6.0 per ASTM E112

Non-metallic inclusion :

≤ 1.0 (thick), ≤ 1.5 (thin) per ASTM E45 method A (more pure by ESR route)

Ultrasonic Test

SEP1921, EN 10308, ASTM A388 or agreed methods

Macro-structure

As per ASTM E381

Straightness / flatness

≤ 1.5 mm / m (machined), ≤ 2.5 mm / m (black)

Tolerance

Per discussed

Size range (round bars)

Ø 12 - 500 mm

Size range (flats, plates)

8 - 400 mm in thickness

max. 1100 mm in width

Heat treatment

Annealing

Temperature(°C)

Hardness

840 - 870

max. 230 HB



Hot-forming

Temperature(°C)

850 - 1150

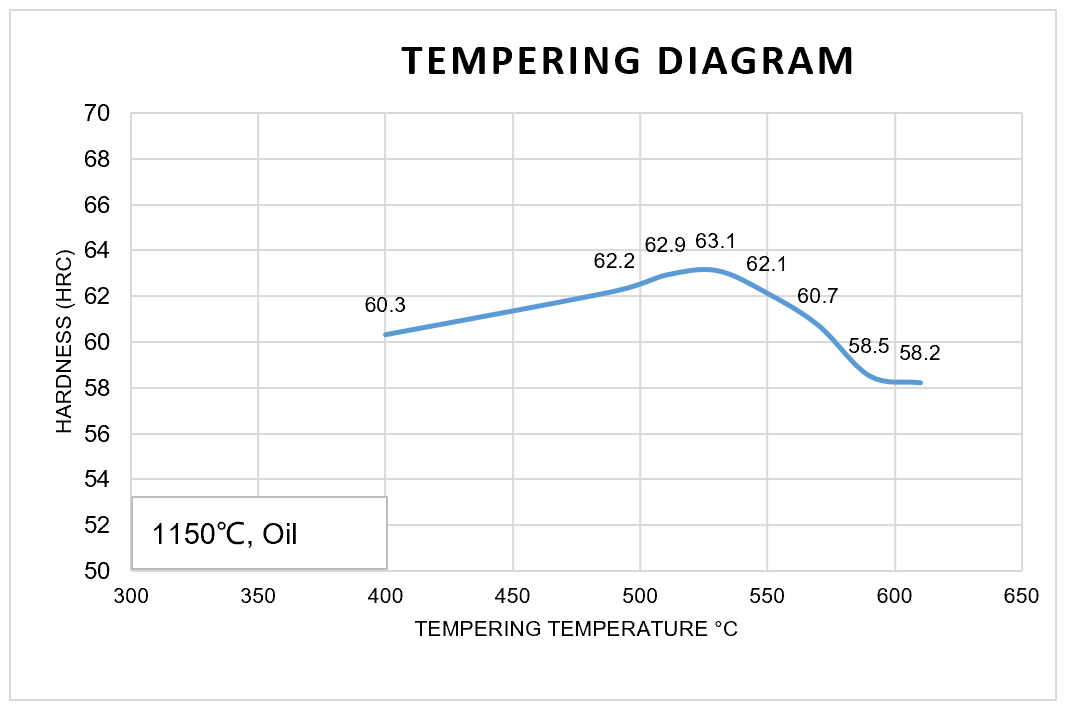

Hardening and tempering

Quenching temperature(°C)

Quenching medium

Frequently-used tempering temperature(°C)

1100 - 1180

Oil

510 - 620



Ac1 Accm Ar1 Arcm Ms
876 925 725 815 105



Coefficient of linear expansion : α(mm/(mm·°C))

Temperature °C 20~100 20~200 20~300 20~400 20~500 20~625 20~700
Αx 10-6 8.2 10.2 11.3 11.8 12.4 12.7 12.9



Mechanical properties of 7Cr7Mo2V2Si/LD steel after different heat treatments :

Temperature °C Tempering °C and rounds Tensile strength (Mpa) Compressive strength (Mpa) Bending strength (Mpa) Deflection δ(mm) Impact toughness J/cm2
1100

510 x 1h x 3 2354 2658 4599 6.7 32.36
530 x 1h x 3 2432 2765 5413 8.9 71.59
550 x 1h x 3 2530 2501 5325 16.5 113.76
570 x 1h x 3 2452 2295 4894 16.5 101.99
590 x 1h x 3 - 2040 4295 16.5 47.07
1150 510 x 1h x 3 1432 2667 3501 3.7 -
530 x 1h x 3 2314 2864 4580 4.7 43.15
550 x 1h x 3 2628 2810 5482 12.7 96.04
570 x 1h x 3 2628 2609 5090 8.3 101.92
590 x 1h x 3 2295 2187 4697 9.8 80.36
1180 510 x 1h x 3 1236 2550 2824 4.6 -
530 x 1h x 3 1491 3168 2854 3.5 28.42
550 x 1h x 3 2716 2756 4982 5.7 71.54
570 x 1h x 3 2560 2648 4639 6.5 44.10
590 x 1h x 3 2422 2442 4786 7.1 41.16

**Generally
1.    Quenching 1150°C, Oil, tempering 550°C x 3 rounds, the strength is the highest
2.    Quenching 1100°C, Oil, tempering 550°C x 3 rounds, the toughness is the highest.
But the comprehensive Performance of No.1 processing is better.





Performance Comparison of LD, Cr12MoV, W18Cr4V/~1.3355, W6Mo5Cr4V2/~1.3343 :

Material Heat treatment Bending strength (N/mm2) Impact toughness (J/cm2) Fracture toughness (N•MM1/2) Hardness (HRC)
Quenching °C Tempering °C
Cr12MoV 970 Oil 200 x 2 3110 50 646 58.5
1080 Oil 200 x 2 2670 48 686 61.5
W18Cr4V 1260 Oil 560 x 3 2880 24.6 489 65.5
W6Mo5Cr4V2 1190 Oil 560 x 3 3210 26.7 494 66.5
7Cr7Mo2V2Si/LD

1100 Oil 550 x 3 5325 114 610 61.1
1100 Oil 570 x 3 4894 102 629 59.7
1150 Oil 550 x 3 5482 96 640 62.1
1150 Oil 570 x 3 5090 102 675 60.7

(x2, x3 means the tempering rounds)
** It can shows that the most standout performance of 7Cr7Mo2V2Si/LD steel is the Strength and toughness. It also have a high hardness and good wear resistance.





Recommended quenching + tempering processing for different applications :

Applications Pre-heating Quenching Medium 1st Tempering 2nd Tempering Hardness (HRC)
Punching dies 850±10 °C,  30s/mm 1140±10 °C, 25~30s/mm Oil 600 °C x 1h 550 °C x 2h x 2 rounds 57 ~ 60
Cold heading, cold extrusion dies 850±10 °C,  30s/mm 1140±10 °C, 25~30s/mm Oil 550 °C x 1h x 3 rounds - 60 ~ 63

** It must go through “Pre-heating” processing before quenching (staged preheating is also recommendedd, the first preheating is 600~620°C, the second preheating is 840~860°C), generally preheating time is twice than quenching time and depends on the shape and size of the mold parts.
** Quenching temperature chose from 1100 to 1150°C, the quenching heating coefficient is 25~30s/mm, and it is advisable to use a salt bath furnace to avoid decarburization.



Downloads

  • 2024-06-12 Alta 7Cr7Mo2V2Si(LD) (011 - S6 - T2).pdf

    끂56 313.54 KB

Product images

넳 넲

Features

² High strength and toughness

² Good wear resistance

² Good cold and hot processing performance

² Good dimensional stability
